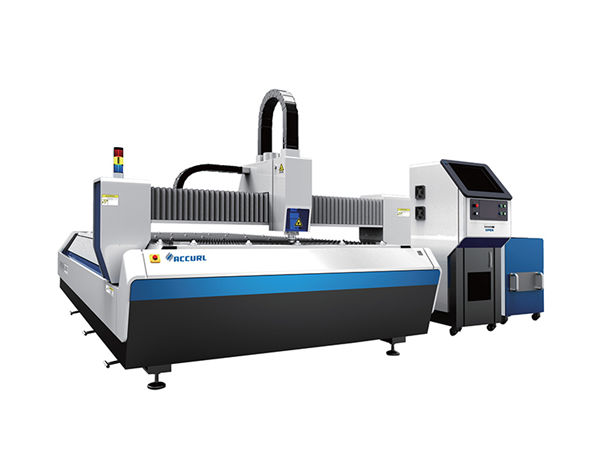

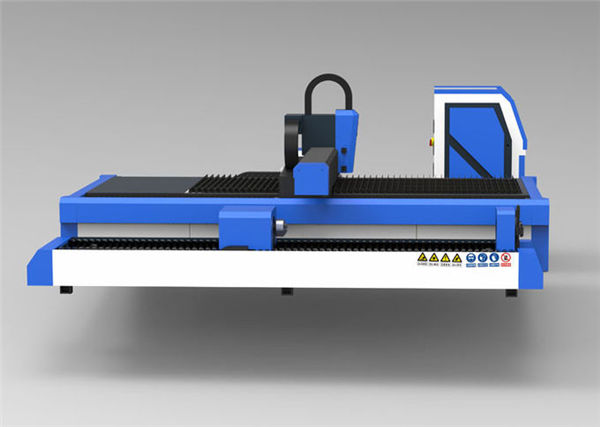

közepes teljesítményű rozsdamentes acél lézervágó gép, 1500w lézervágó gép

közepes teljesítményű rozsdamentes acél lézervágó gép, 1500w lézervágó gép

termék leírás


Tanúsítás: CE / FDA
Fizetési és szállítási feltételek:
Minimális rendelési mennyiség: 1 SET
Ár: USD Tárgyalható
Csomagolás részletei: Fából készült doboz vaskötő övvel
Szállítási idő: 15 - 30 munkanap
Fizetési feltételek: T / T, L / C, Western Union
Ellátási képesség: 2000 egység / év

Részletes termékleírás


Vágási terület:1500 * 3000mmHűtési mód:Vízhűtés
Lézer teljesítmény:1500WVezérlőszoftver:Cypcut
Feltétel:ÚjWorktable Max Load:1000kgs
CNC vagy sem:IgenLézerhullámhossz:1060-1080nm
Pozicionálás pontossága:± 0,05 mmÜzemi feszültség:380V / 50Hz

termékleírás


1. The machine is welded with a high-intensity whole sheet, and after high temperature annealing,the machine can be used for 20 years without any deformation.
2. With imported precision gear and rack, linear guide rail and transmission,the machine tool is of high precision, high efficiency and high stability.
3. Equipped with advanced wireless handheld terminal,the machine can be operated with remote control.
4. The equipment adopts the laser special speed matching system, high performance servo motor drive, is the integration of pneumatic, mechanical, photoelectric, numerical control and other advanced technologies as one of the high-tech products.

Jellemzők


1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficieny.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.

Fiber Laser Cutting Machine Different Laser Sources Comparing


Model of Laser SourceRostCO2Disc
Electro-optical Conversion Efficiency30%10%15%
Max. Output50Kw20Kw8Kw
BPP(4/5Kw)<2.568
Life of Diode Pumped>100,000NA.10,000
Occupied Area(4/5Kw)<1M23M2>4M2
Maintenanceno needneedOften
Soft Processingmore suitableunsuitablesuitable
Stabilitybestgoodgood
Absorption rate%--steel351235
Absorption rate%--aluminum727
Replaced PartsHigh brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other.Laser work requires gas
supplement, reflection lens replacement.
Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000.

Applied materials of 1500W Fiber Laser Cutting Machine


A rostvágót elsősorban szénacél, lágyacél, rozsdamentes acél, szilikonacél, alumíniumötvözet, titánötvözet, horganyzott acéllemez, pácolólap, alumínium-cinklemez, réz és sokféle fémes anyag vágására használják. Ez egy cnc lézervágó, amely nagy pontosságú vágást végezhet. Nevezhetjük szálas vágógépnek, száloptikai lézervágónak, fém lézervágónak, rostvágónak, szénacél vágónak, cnc lézervágónak.

Műszaki paraméter


Munkaterület3000 * 1500mm
Vezérlő + Magasság követőCypcut
LézerforrásFiber Laser Source 1500W
Hullámhossz1070nm ± 10nm
LézerfejVálasztható
Fogaskerék és állványNémetország
VezetősínTajvani HIWIN
Pozícionálási pontosság≤ ± 0,04
Vágási vastagság1-20mm
Maximális vágási sebesség40000mm / perc (az anyagok szerint)
Üzemi feszültségAC220V / 110V ± 10% 50Hz / 60Hz
Min vonalszélesség≤0.12mm
ÁtvitelYaskawa servo 850W + FASTON reduktor
Z tengelyYaskawa 400W + fék
LehűlésVízhűtés
Szerkezet10 mm vastagságú hegesztett acélcső, alumíniumötvözet tartó
Energiafogyasztás≤7.5KW

Technical Parameter: Working Area	3000*1500mm Controller+Heigh follower	Cypcut Laser Source	Fiber Laser Source 1500W Wave Length	1070nm±10nm Laser Head	Optional Gear and Rack	Germany Guide Rail	Taiwanese HIWIN Positioning Precision	≤±0.04mm Cutting Thickness	1-20mm Max cutting speed	40000mm/min(according to materials) Working voltage	AC220V/110V±10% 50HZ/60HZ Min line Width	≤0.12mm Transmission	Yaskawa servo 850W+FASTON reducer Z axis	Yaskawa 400W+brake Cooling	Water Cooling Structure	10mm Thickness Welded steel tube,Aluminium Alloy Gantry Power Consumption	≤7.5KW

Performance for 1500W Fiber Laser Cutting Machine


1.The machine enjoys outstanding performances with high cutting speed, high efficiency, safety and stability. And diode pump solid state laser has the advantage of longer working life, free maintenance and the highest photo-electric conversion efficiency. It also ensures a small divergence angle and light beams of good quality.
2. The light spot enjoys good quality and small heat deformation. Besides, cutting seams are even and nice.
3. After tempering treatment, steel frames with high rigidity are of high vibration-absorbed performance with tempering treatment. And frames with gantry structure are one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy.
4. Imported servo motors and sophisticated direction transmission mechanism ensure high steadiness and accuracy.
5. An intuitive human-machine interface (HMI) with many practical functions is easy to operate.
6. An imported ball screw and linear guides ensure transmission and direction.
7. The sealed cutting head automatically tracks work pieces and has the function of anti-collision.
8. The power supply of the machine is designed with automatic safety protection, and features fault alarm.
9. With fashionable, delicate and artistic design, the compact machine covers smaller floor area without scattered parts. And it’s easy to operate the machine.
